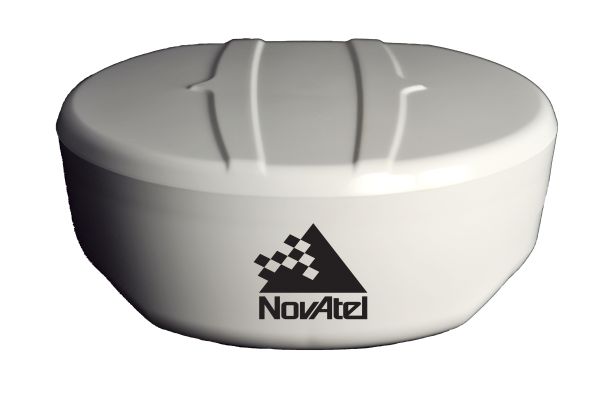

SMART-AG™This L1 GPS+GLONASS receiver plus antenna is ideal for harsh agricultural applications. Contained in a rugged, low profile enclosure, the SMART-AG delivers sub-meter, real-time accuracy and smooth consistent positions for easy pass-to-pass navigation.
PerformanceThe SMART-AG features 14 channels for L1 GPS and 12 channels for L1 GLONASS code and phase tracking. Two additional channels are dedicated to Satellite-Based Augmentation System (SBAS: WAAS, EGNOS and MSAS) signals. Measurement and position data is provided at up to 20 Hz. GL1DE ™NovAtel's proprietary GL1DE technology utilizes the very accurate carrier phase measurements to provide ultra smooth positions and excellent pass-to-pass accuracy for agricultural applications. Integrated into every SMART-AG antenna, GL1DE functions with SBAS and DGPS as well as in autonomous situations. GL1DE provides steady, smooth output especially suited for guidance and auto steer installations and will even bridge through short periods of poor satellite availability. Quality & FlexibilitySMART-AG is designed to meet or exceed stringent MIL-STD-810F, ISO 7637-2, and ISO 15003 specifications. While built-in magnets are standard to simplify mounting, fixed mounting is also supported. Two NMEA 0183 compatible RS-232 serials ports, and an NMEA2000 compatible CAN port help provide maximum flexibility. A simulated radar ground speed output, a one pulse per second output (1PPS), and an event mark input are also provided. Three daylight readable status LEDs help to simplify diagnoses in the event of field problems. |
|
||||||||||||||||||
|
