名稱 |
說明 |
頻率 |
尺寸(mm) |
天線單元增益(dBic) |

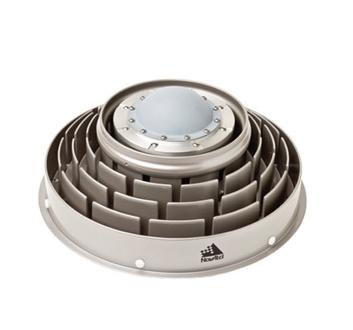

GNSS-750
|
GPS, GLONASS, Galileo and Compass functionality |
GPS L1/L2/L2C/L5
Galileo L1/E5a/E5b/E6/AltBOC
GLONASS L1/L2/L3
Compass B1/B2/B3
L-band SBAS/OmniSTAR/CDGPS |
380 mm x 200 mm |
Typically 40 dBi |

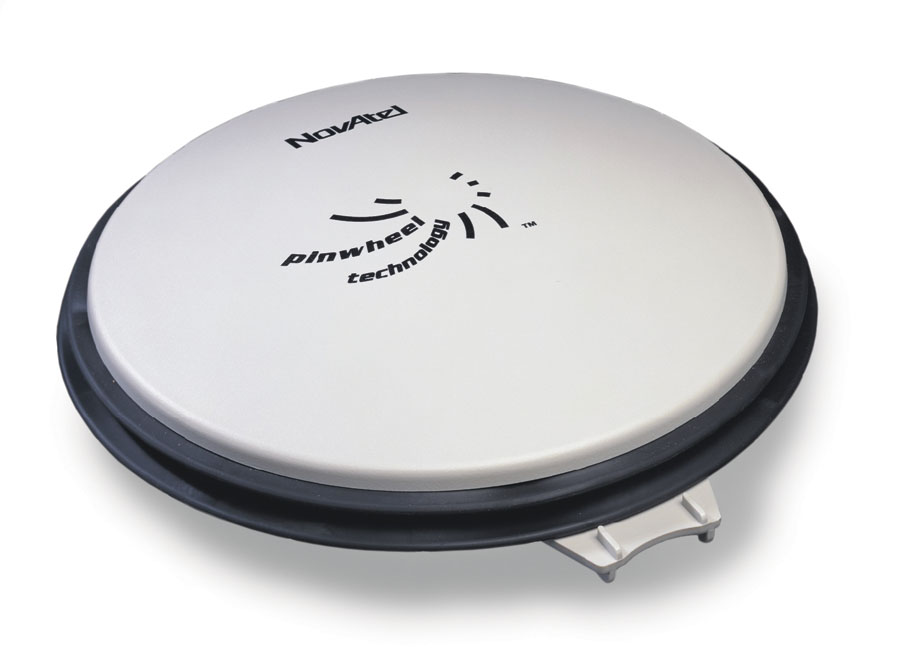

GPS-704X
|
GPS, Galileo and GLONASS capable antenna |
GPS L1/L2/L5
Galileo
L1/E5a/E5b/E6
GLONASS L1/L2
L-band |
185 dia x 69 mm |
L1 +6.0
L2 +2.5
L5, E5a +2.0
E6 +3.0
L-band +6.0
|
GPS-703-GGG
|
700系列高精度採用風火輪（PinWheel™）技術天線的一款 |
GPS: L1, L2, L5
GLONASS: L1, L2
Galileo
L1/E5a/E5b
|
185 x 69mm |
L1: +5.0 dBic
L2: +3.0 dBic
L5: +3.0 dBic
E1 & E2 (L1): +5.0 dBic
E5: +3.0 dBic
|
GPS-702-GG
|
具有風火輪技術和高相位中心穩定性的天線 |
GPS L1/L2
GLONASS L1/L2 |
185 X 69 |
L1: +5.0 dBi
L2: +2.0 dBi |
GPS-701-GGL
|
Single frequency GPS, GLONASS Pinwheel antenna with
L-band (OmniSTAR, GDGPS) capability
|
GPS L1
GLONASS L1
L-band |
185 X 69 |
L1: +5.0 dBi
L-band: +5.0 dBi |
GPS-702-GGL |
Dual frequency GPS, GLONASS Pinwheel antenna with
L-band (OmniSTAR, CDGPS) capability
|
GPS L1/L2
GLONASS L1/L2
L-band |
185 X 69 |
L1: +5.0 dBi
L2: +2.0 dBi
L-band: +5.0 dBi |
GPS-701-GG
|
Single frequency version of GPS-702-GG |
GPS L1
GLONASS L1 |
185 X 69 |
L1: +5.0 dBi |
GPS-702L |
L1 /L2/L-band 天線符合RoHS標準 |
GPS L1/L2
L-band |
185 x 69 |
L1: +5.0 dBi
L2: +1.5 dBi
L-band: +5.0 dBi
|
ANT-C2GA-TW-N
(formerly ANT-533)
|
帶扼流圈的高性能天線 |
L1/L2 |
308 dia x 223 |
L1: +7.7 dBi
L2: +4.7 dBi |
ANT-A72GLA4-TW-N
(formerly ANT-534-C)
|
ARINC 743A dual frequency, L-band antenna |
GPS L1/L2
L-band |
119mm X 76mm X19mm |
L1: +4.1 dBi
L2: +3.9 dBi
L-Band: +5.7 dBi |
ANT-A72GA-TW-N
(formerly ANT-532-C)
|
ARINC 743A , 機載天線 |
L1/L2 |
119 x 76 x 19 |
L1: +4.7 dBi
L2: +3.3 dBi |
ANT-26C1GA-TBW-N
(formerly ANT-537-C)
|
Compact and lightweight model for mobile
applications |
L1 |
56 dia x 71 |
L1: -1.0 dBi |
ANT-35C1GA-TW-N
(formerly ANT-536-C)
|
Low profile antenna ideal for airborne
applications |
L1 |
89 dia x 15 |
L1: -1.0 dBi |
